Name: Festo 1544198 Bus node CTEU-CC
Brand: Festo

Bus node CTEU-CC

The Festo 1544198 industrial component is designed for CC-LINK® communication and features a durable PA housing measuring 40 mm in width, 91 mm in length, and 50 mm in height with a product weight of 90 g. It supports mounting on an electrical interface or electrical sub-base, achieving an IP65 and IP67 degree of protection when mounted and unused connections are sealed within an ambient temperature range of 0 °C to 50 °C. The unit includes specific LED displays for operating voltage, module system status, data transmission errors, and bus activity, alongside comprehensive diagnostics for communication errors, system diagnostics, and undervoltage. Please submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1544198
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1544198.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: CC-LINK®
Dimensions W x L x H: 40 mm x 91 mm x 50 mm
Width dimension: 40 mm
Type of mounting: On electrical interface | on the electrical sub-base
Product weight: 90 g
Ambient temperature: 0 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Note on degree of protection: In mounted state | Unused connections sealed
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
KC characters: KC-EMV
Certication: RCM compliance mark | c UL us - Listed (OL)
Note on materials: RoHS compliant
Housing material: PA
LED display (product-specic): PS: operating voltage for electronics and load supply | X1: module system status at I-Port 1 | X2: module system status at I-Port 2
LED display (bus-specic): Err: data transmission error | Run: Bus active
Diagnostics: Communication error | System diagnostics | Undervoltage
Control elements: DIL switch

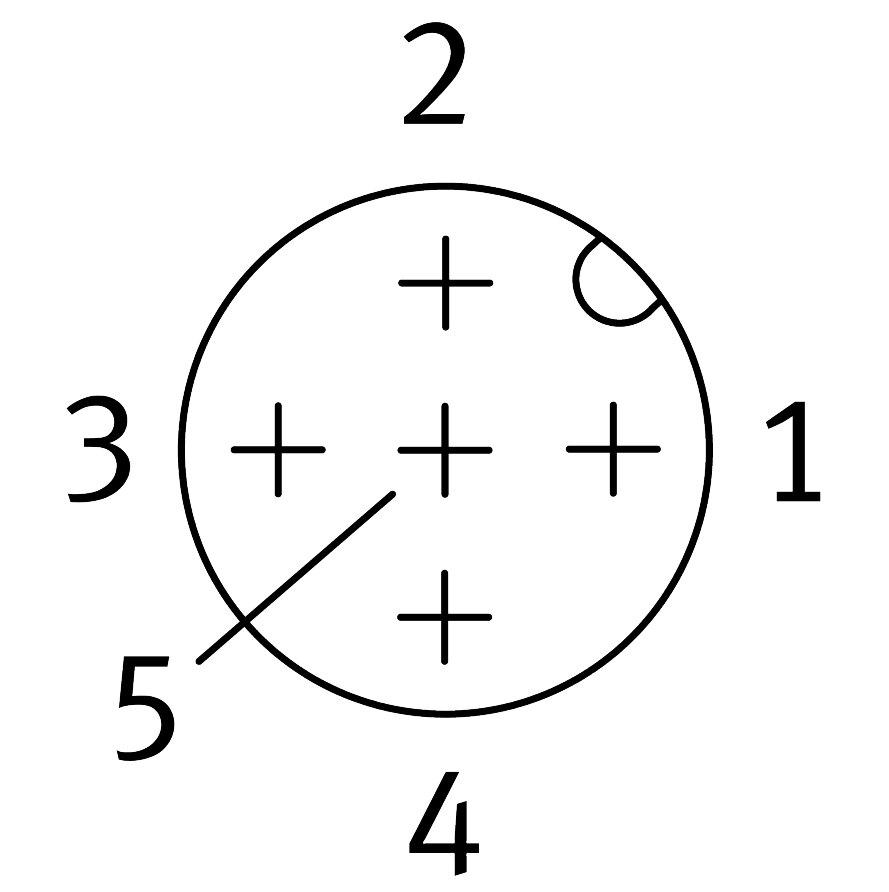

Note on eldbus interface: Open style (screw terminal, 5-pin, degree of protection: IP20)
