Festo
1544900

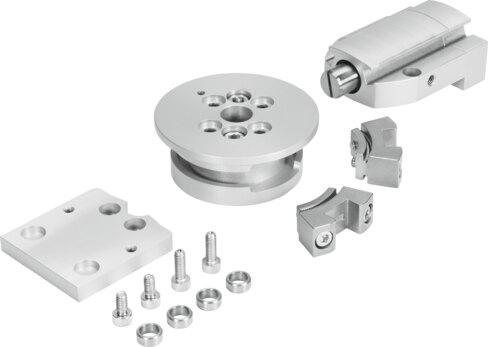

Clamping unit DADL-EL-Q11-35/40
The Festo 1544900 is an industrial component utilizing a piston and piston rod structural design with a size rating of 35 and 40, featuring an adjustable swivel angle ranging from 57 degrees to 200 degrees. Constructed with a hard-anodized aluminum housing, anodized aluminum housing cover and disc, polymer bearing, galvanized steel screws, and NBR and TPE-U(PU) seals, it operates within a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar, 43.5 psi to 116 psi) using compressed air according to ISO 8573-1:2010 [7:-:-] where oil lubrication is possible and required for further use. This unit incorporates through-hole and centering sleeve mounting, M5 pneumatic connections, position sensing via a proximity switch, an ambient temperature range of -10 °C to 60 °C, a weight of 900 g, moderate corrosion resistance (CRC 2), VDMA24364-B1/B2-L LABS conformity, and RoHS compliance. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1544900
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1544900.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 35 | 40
- Adjustment range of swivel angle
- 57 deg...200 deg
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar | 43.5 psi...116 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 900 g
- Type of mounting
- Via through-hole and centering sleeve
- Pneumatic connection
- M5
- Note on materials
- RoHS compliant
- Seals material
- NBR | TPE-U(PU)
- Housing material
- Aluminum | Hard-anodized
- Housing cover material
- Aluminum | Anodized
- Material of bearing
- Polymer
- Disc material
- Aluminum | Anodized
- Material of screws
- Steel | Galvanized
- Mode of operation
- Single-acting | Pulling
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1544900. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
