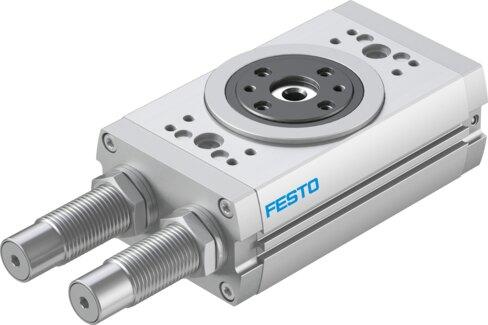

Name: Festo 1547102 Rotary actuator DRRD-35-180-FH-Y9A
Brand: Festo

Rotary actuator DRRD-35-180-FH-Y9A

The Festo 1547102 is a double-acting industrial component utilizing a gear rack and pinion structural design to achieve a 180-degree swivel angle with an 85-degree cushioning angle. This Size 35 unit delivers a theoretical torque of 15.8 Nm at 6 bar across an operating pressure range of 0.2 MPa to 1 MPa, featuring internal hydraulic cushioning normal and position sensing via proximity switch. Weighing 4784 g with VDMA24364 Zone III LABS conformity, it operates within an ambient temperature range of -10 °C to 60 °C using compressed air meeting ISO 8573-1:2010 [7:4:4] standards. Submit the exact part number, quantity, and application requirements to request a quote for this component.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1547102
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1547102.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 35
Cushioning angle: 85 deg
Setting range of swivel angle for each end position: +10 /-190 deg
Swivel angle: 180 deg
Cushioning: Internal hydraulic cushioning normal
Mounting position: Any
Structural design: Gear rack/pinion
Position sensing: Via proximity switch
Operating pressure: 0.2 MPa...1 MPa | 2 bar...10 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Ambient temperature: -10 °C...60 °C
Theoretical torque at 6 bar: 15.8 Nm
Permissible mass moment of inertia: 1.5 kgm²
Product weight: 4784 g
Type of mounting: Alternatively: | With through-hole | With internal thread
Pneumatic connection: G1/8
Note on materials: RoHS compliant
Drive shaft material: Quenched and tempered steel
Cover material: Aluminum | Anodized
Seals material: NBR | TPE-U(PU)
Housing material: Wrought aluminum alloy | Smooth-anodized
