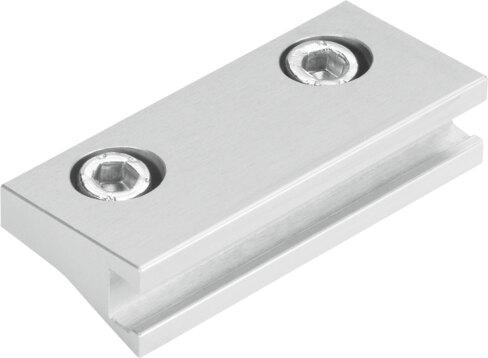

Reference imageConfirm configuration by manufacturer part number.
Festo
1548054
Sensor bracket DASI-Q11-40-A-SR
The Festo 1548054 is a size 40 sensor rail designed for T-slots with a matching piston diameter of Ø40 and a product weight of 62 g. It features CRC 2 moderate corrosion stress resistance, VDMA24364-B1/B2-L LABS conformity, RoHS compliant materials, and galvanized steel screws, operating within an ambient temperature range of -10 °C to 60 °C. Mounting is achieved via clamping in a T slot, with a through-hole and screw, or with slot nuts. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1548054
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1548054.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Design
- For T-slot
- for piston Ø
- Ø40
- Structural design
- Sensor rail
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 62 g
- Type of mounting
- Clamped in T slot | With through-hole and screw | With slot nuts
- Note on materials
- RoHS compliant
- Material of screws
- Steel | Galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1548054. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
