Festo
1553813

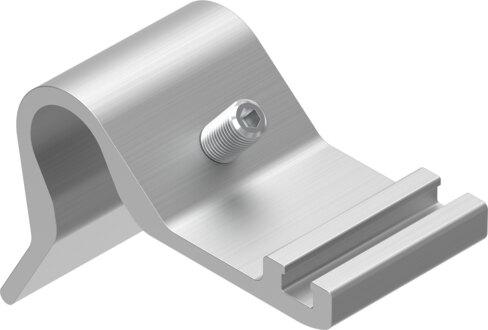

Sensor bracket DASP-M4-160-A
This Festo industrial component, part number 1553813, features a size 160 tie rod design suitable for piston diameters from Ø160 to Ø200 and can be installed in any mounting position. Constructed with an anodized wrought aluminum alloy housing and high-alloy stainless steel screws, the unit weighs 41.5 g, provides a corrosion resistance class of 3 for high corrosion stress, complies with VDMA24364-B2-L LABS conformity and RoHS material standards, and requires a tightening torque of 0.6 Nm to 1 Nm. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1553813
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1553813.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 160
- Design
- For tie rods
- Mounting position
- Any
- for piston Ø
- Ø160 - Ø200
- Corrosion resistance class (CRC)
- 3 - High corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Tightening torque
- 0.6 Nm...1 Nm
- Product weight
- 41.5 g
- Note on materials
- RoHS compliant
- Housing material
- Wrought aluminum alloy | Anodized
- Material of screws
- high-alloy stainless steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1553813. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
