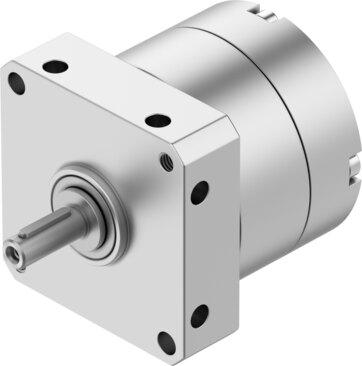

Name: Festo 1559484 Rotary actuator DSM-T-10-90-P
Brand: Festo

Rotary actuator DSM-T-10-90-P

The Festo 1559484 is a double-acting industrial component featuring a rotary vane structural design with a size 10 and an adjustable swivel angle from 0 to 90 degrees. It operates within a pressure range of 0.35 MPa to 0.8 MPa utilizing compressed air conforming to ISO 8573-1:2010 [7:4:4], and incorporates elastic cushioning rings or pads at both ends with a 0.5-degree cushioning angle. Designed for installation in any mounting position, the unit handles a maximum stop force of 60 N, a maximum radial force of 30 N, and a maximum axial force of 10 N within an ambient temperature range of 0 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1559484
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1559484.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 10
Cushioning angle: 0.5 deg
Swivel angle: 0 deg...90 deg
Permissible stop radius: 13 mm
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Rotary vane
Position sensing: None
Operating pressure: 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
Max. swivel frequency at 6 bar: 3 Hz
Repetition accuracy: 1 deg
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 0 - No corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: 0 °C...60 °C
Max. stop force: 60 N
Max. axial force: 10 N
Max. radial force: 30 N
Theoretical torque at 6 bar: 1.7 Nm
Permissible mass moment of inertia: 0.0026 kgm²
Product weight: 200 g
Type of mounting: With internal thread
Pneumatic connection: M3
Note on materials: RoHS compliant
Drive shaft material: high-alloy stainless steel
Seals material: TPE-U(PU)
Housing material: Aluminum | Anodized

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1559484. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
