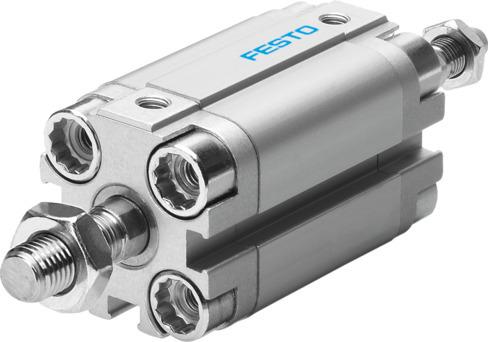

Reference imageConfirm configuration by manufacturer part number.
Festo
156051
Compact air cylinder ADVU-16- -A-P-A-S2
The Festo 156051 is a double-acting industrial component featuring a 16 mm piston diameter, a variable stroke ranging from 1 mm to 200 mm, and a through piston rod with an external thread and M5 pneumatic connection. It operates within a pressure range of 0.13 MPa to 1 MPa (1.3 bar to 10 bar, or 18.85 psi to 145 psi) utilizing compressed air per ISO 8573-1:2010 [7:4:4] and accommodates optional oil-lubricated operation. Designed with elastic cushioning rings at both ends, position sensing capability for proximity sensors, and a moderate corrosion resistance class (CRC 2), the unit delivers a theoretical force of 90 N at 6 bar in both retracting and advancing directions across an ambient temperature range of -20 °C to 80 °C. Request a quote today by submitting the exact part number, required quantity, and your application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156051
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156051.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...200 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Through piston rod
- Operating pressure
- 0.13 MPa...1 MPa | 1.3 bar...10 bar | 18.85 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.01 J
- Theoretical force at 6 bar, retracting
- 90 N
- Theoretical force at 6 bar, advancing
- 90 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Flange screws material
- High-alloy stainless steel
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 156051. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
