Festo
1561556

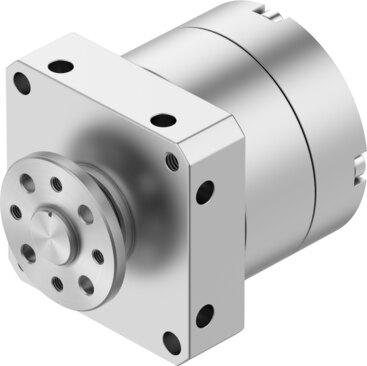

Rotary actuator DSM-T-10-180-P-FW
The Festo part number 1561556 is a double-acting rotary vane industrial component featuring a size 10 designation and an adjustable swivel angle from 0 degrees to 180 degrees. Operating within a pressure range of 0.35 MPa to 0.8 MPa (3.5 bar to 8 bar), this unit utilizes elastic cushioning rings or pads at both ends with a 0.5-degree cushioning angle and a maximum swivel frequency of 3 Hz at 6 bar. It accommodates any mounting position, a permissible stop radius of 13 mm, a repetition accuracy of 1 degree, and withstands a max stop force of 60 N, max axial force of 10 N, and max radial force of 30 N within an ambient temperature range of 0 °C to 60 °C. Compressed air as per ISO 8573-1:2010 [7:4:4] serves as the operating medium, allowing for oil lubrication operation that is required for further use. Please submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1561556
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1561556.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 10
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...180 deg
- Permissible stop radius
- 13 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.35 MPa...0.8 MPa | 3.5 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 60 N
- Max. axial force
- 10 N
- Max. radial force
- 30 N
- Theoretical torque at 6 bar
- 1.7 Nm
- Permissible mass moment of inertia
- 0.0026 kgm²
- Product weight
- 210 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1561556. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
