Festo
156209

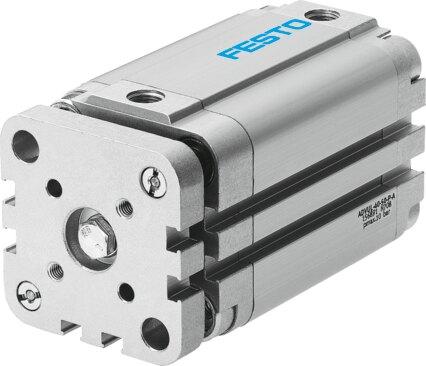

Compact cylinder ADVUL-100- -P-A
The Festo 156209 is a double-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke ranging from 1 mm to 400 mm, and a piston rod at one end with a guide rod and yoke for torsion protection. It operates on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range and a temperature span of -20 °C to 80 °C, delivering theoretical forces of 4712 N advancing and 4418 N retracting at 6 bar. Position sensing is accomplished via proximity switch, while elastic cushioning rings at both ends absorb a 1 J impact energy in the end positions under a moderate corrosion stress class of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156209
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156209.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...400 mm
- Piston diameter
- 100 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass at 0 mm stroke
- 1133 g
- Additional moving mass per 10 mm stroke
- 43 g
- Basic weight with 0 mm stroke
- 3316 g
- Additional weight per 10 mm stroke
- 116 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 156209. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
