Festo
156211

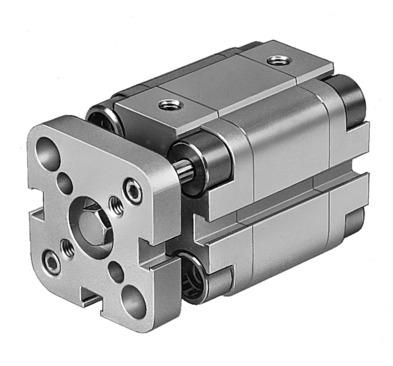

Compact air cylinder ADVUL-16- -P-A-S6
The Festo 156211 is a double-acting industrial component featuring a 16 mm piston diameter, an adjustable stroke from 1 mm to 200 mm, and integrated elastic cushioning rings at both ends. Operating at pressures between 1.5 bar and 10 bar using compressed air according to ISO 8573-1:2010 [7:4:4], this unit provides theoretical forces of 90 N retracting and 121 N advancing at 6 bar. Constructed with heat-resistant seals supporting ambient temperatures up to 120 °C and a guide rod with a yoke for anti-torsion protection, it achieves a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156211
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156211.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...200 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...120 °C
- Impact energy in the end positions
- 0.1 J
- Theoretical force at 6 bar, retracting
- 90 N
- Theoretical force at 6 bar, advancing
- 121 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Flange screws material
- High-alloy stainless steel
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- FPM
- Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 156211. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
