Festo
156218

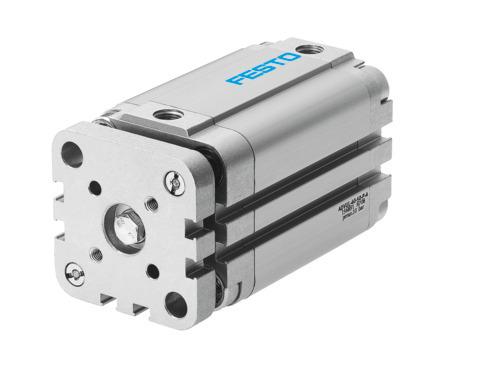

Compact air cylinder ADVUL-80- -P-A-S6
The Festo part number 156218 is a double-acting industrial component featuring a piston diameter of 80 mm and an adjustable stroke length from 1 mm to 400 mm with elastic cushioning rings or pads at both ends. Designed with a guide rod with yoke for torsion protection and heat-resistant seals supporting temperatures up to 120 °C, this unit operates within a pressure range of 0.1 MPa to 1 MPa using compressed air as per ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 2827 N retracting and 3016 N advancing at 6 bar, incorporates position sensing for proximity sensors, and achieves a corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156218
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156218.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...400 mm
- Piston diameter
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- 0 °C...120 °C
- Impact energy in the end positions
- 0.75 J
- Theoretical force at 6 bar, retracting
- 2827 N
- Theoretical force at 6 bar, advancing
- 3016 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- FPM
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 156218. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
