Festo
156269

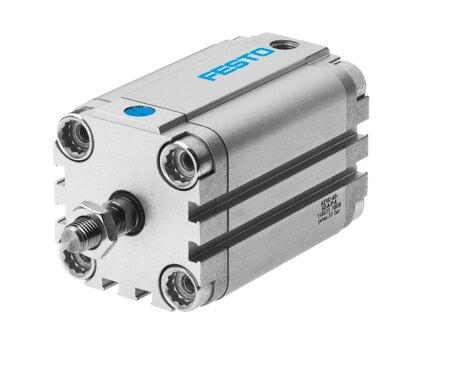

Compact cylinder AEVU-100- -A-P-A
The Festo 156269 is a single-acting industrial component featuring a 100 mm piston diameter, an adjustable stroke from 1 mm to 25 mm, and an M20x1.5 external piston rod end at one end. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar / 8.7 psi to 145 psi), this unit delivers a theoretical advancing force of 4516 N at 6 bar. It incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and achieves a moving mass of 614 g at 0 mm stroke with an additional 38 g per 10 mm stroke. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156269
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156269.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, advancing
- 4516 N
- Moving mass at 0 mm stroke
- 614 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight with 0 mm stroke
- 2797 g
- Additional weight per 10 mm stroke
- 177 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR
