Festo
156277

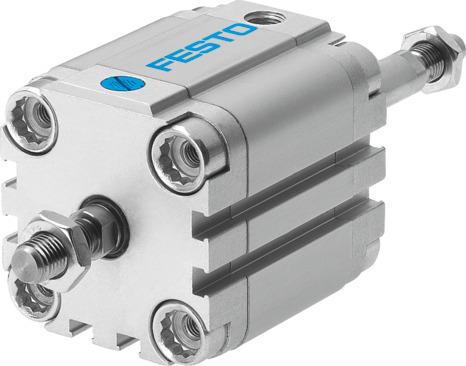

Compact air cylinder AEVU-63- -A-P-A-S2
The Festo 156277 is a single-acting industrial component featuring a 63 mm piston diameter, an adjustable stroke ranging from 1 mm to 25 mm, and a through piston rod design with an external thread on the piston rod end. Operating at pressures between 0.08 MPa and 1 MPa (0.8 bar to 10 bar / 11.6 psi to 145 psi) using compressed air conforming to ISO 8573-1:2010 [7:4:4], this unit delivers a theoretical advancing force of 1679 N at 6 bar and incorporates elastic cushioning rings at both ends for 0.7 J of impact energy absorption. Built with galvanized steel flange screws offering moderate corrosion resistance (CRC 2) and VDMA24364-B1/B2-L LABS conformity, it functions in any mounting position across an ambient temperature range of -20 °C to 80 °C via a G1/8 pneumatic connection and optional through-hole or accessory mounting. Submit part number 156277, quantity, and application requirements to receive an official price and lead-time quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156277
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156277.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 63 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Through piston rod
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar | 11.6 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.7 J
- Theoretical force at 6 bar, advancing
- 1679 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy steel
- Material of cylinder barrel
- Wrought aluminum alloy
