Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

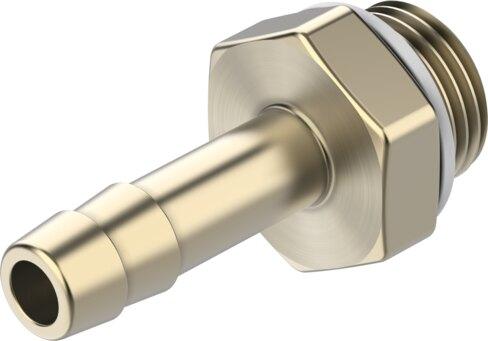

Reference imageConfirm configuration by manufacturer part number.
Festo
15633
Barb tubing fitting N-3/8-P-6-MS
The Festo part number 15633 is a straight industrial component featuring a G3/8 external thread and a pneumatic connection for 6 mm inside diameter tubing with a 4.5 mm nominal width. Constructed with a brass housing, sealing ring plug seal, and a product weight of 27.96 g, this RoHS-compliant unit operates across a temperature range of -10 °C to 60 °C at pressures from -0.95 bar to 16 bar using compressed air per ISO 8573-1:2010 [7:-:-]. Delivered in a pack size of 10, the component supports any mounting position, a maximum tightening torque of 15 Nm, oil lubrication operation, a CRC corrosion resistance class of 1, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15633
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15633.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 4.5 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 10
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 15 Nm
- Product weight
- 27.96 g
- Pneumatic connection 1
- External thread G3/8
- Pneumatic connection 2
- For tubing I.D. 6 mm
- Note on materials
- RoHS compliant
- Housing material
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15633. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
