Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

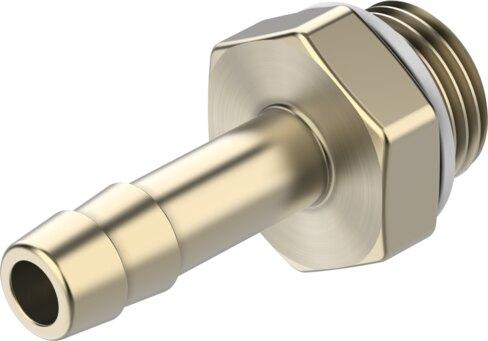

Reference imageConfirm configuration by manufacturer part number.
Festo
15635
Barb tubing fitting N-1/2-P-9-MS
The Festo 15635 is a straight industrial component featuring a brass housing, an 8 mm nominal width, and an external thread G1/2 pneumatic connection 1 paired with a pneumatic connection 2 for tubing with a 9 mm inside diameter. It operates within a temperature range of -10 °C to 60 °C at operating pressures from -0.95 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-], with oil lubrication operation possible. This pack size of 1 includes a sealing ring on the screwed plug, supports any mounting position with a maximum tightening torque of 18 Nm, and has a product weight of 36.06 g with RoHS compliant materials, CRC 1 low corrosion stress, and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15635
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15635.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 8 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 18 Nm
- Product weight
- 36.06 g
- Pneumatic connection 1
- External thread G1/2
- Pneumatic connection 2
- for pneumatic tubing inside diameter 9 mm
- Note on materials
- RoHS compliant
- Housing material
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15635. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
