Festo
15637

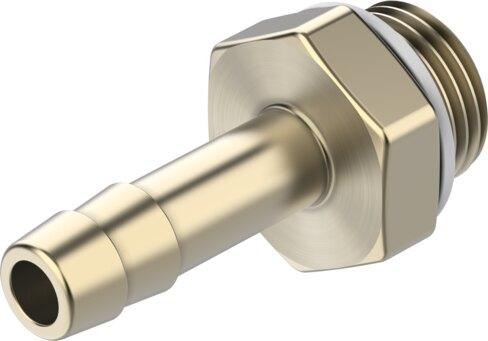

Barb tubing fitting N-3/4-P-13-MS
The Festo part number 15637 is a straight industrial component featuring a G3/4 external thread for pneumatic connection 1 and a connection for a 13 mm inside diameter pneumatic tubing for connection 2, all housed within a brass body with a nominal width of 11 mm. It operates across an ambient temperature range of -10 °C to 60 °C and an operating pressure range of -0.95 bar to 16 bar using compressed air as per ISO 8573-1:2010 [7:-:-], supporting oil lubrication and a maximum tightening torque of 40 Nm with a sealing ring on the screwed plug. This RoHS-compliant unit weighs 99.62 g, maintains a CRC corrosion resistance class of 1, and conforms to VDMA24364-B1/B2-L LABS standards for any mounting position. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15637
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15637.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal width
- 11 mm
- Type of seal on screwed plug
- Sealing ring
- Mounting position
- Any
- Design
- Straight design
- Pack size
- 1
- Operating pressure for entire temperature range
- -0.95 bar...16 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -10 °C...60 °C
- Max. tightening torque
- 40 Nm
- Product weight
- 99.62 g
- Pneumatic connection 1
- External thread G3/4
- Pneumatic connection 2
- for pneumatic tubing inside diameter 13 mm
- Note on materials
- RoHS compliant
- Housing material
- Brass
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15637. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
