Festo
156373

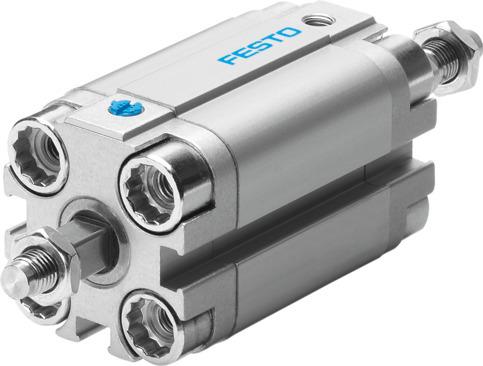

Compact air cylinder AEVULQ-25- -A-P-A-S2
The Festo 156373 is a single-acting industrial component featuring a 25 mm piston diameter, an adjustable stroke from 1 mm to 25 mm, and a square piston rod for torsion protection and guidance. Operating on compressed air within a pressure range of 0.15 MPa to 1 MPa (1.5 bar to 10 bar / 21.75 psi to 145 psi), this model incorporates elastic cushioning rings at both ends, a through piston rod, and an external thread piston rod end. It delivers a theoretical advancing force of 221 N at 6 bar, supports position sensing via proximity sensors, and features an M5 pneumatic connection with a moderate corrosion resistance class (CRC 2) rating. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156373
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156373.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 1 mm...25 mm
- Piston diameter
- 25 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Through piston rod
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.1 J
- Theoretical force at 6 bar, advancing
- 221 N
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- High-alloy stainless steel
- Material of cylinder barrel
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 156373. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
