Name: Festo 1564984 Electrical interface CPV14-GE-PT-8
Brand: Festo

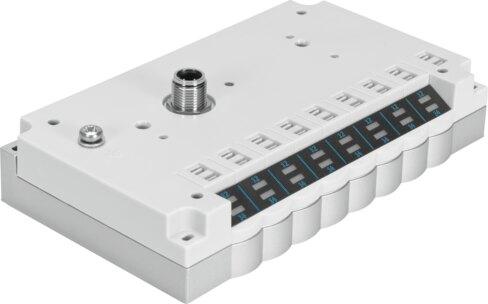

Electrical interface CPV14-GE-PT-8

The Festo industrial component, part number 1564984, accommodates up to 8 valve positions and features diagnostics for load supply undervoltage with reverse polarity protection for operating voltage. Built for any mounting position, this unit operates on a nominal voltage of 24 V DC with an operating voltage range of 18 V to 30 V for electronics and sensors, and 21.6 V to 26.4 V for load voltage, consuming 35 mA intrinsically at operating voltage and 700 mA at load voltage. It supports I-Port and IO-Link protocols at baud rates of 38.4 kbps and 230.4 kbps, holds ATEX Category II 3G and UKEX Zone 2 explosion protection certifications with Ex ec IIC Gc X ignition protection, and possesses a corrosion resistance class of CRC 1 with dimensions measuring 89 mm x 152 mm x 38.25 mm. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1564984
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1564984.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 89 mm x 152 mm x 38.25 mm
Diagnostics: Load supply undervoltage
Mounting position: Any
Max. no. of valve positions: 8
Reverse polarity protection: For operating voltage
Baud rate: 38.4 kbps, 230.4 kbps
Operating voltage range DC electronics/sensors: 18 V...30 V
DC load voltage operating voltage range: 21.6 V...26.4 V
Intrinsic current consumption at load voltage: 700 mA
Intrinsic current consumption at operating voltage: 35 mA
Nominal operating voltage DC load voltage: 24 V
Nominal voltage DC: 24 V
Nominal operating voltage DC: 24 V
Protocol: I-Port | IO-Link®
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC Gc X
Explosion protection certication outside the EU: EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX)
KC characters: KC-EMV
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Relative air humidity: 93% | Non-condensating
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Product weight: 108.5 g
IO-Link®, Connection technology: Device 5-pin
IO-Link®, protocol version: Device V 1.0
IO-Link®, communication mode: COM2 (38.4 kBd), COM3 (230.4 kBd)
