Festo
1565425

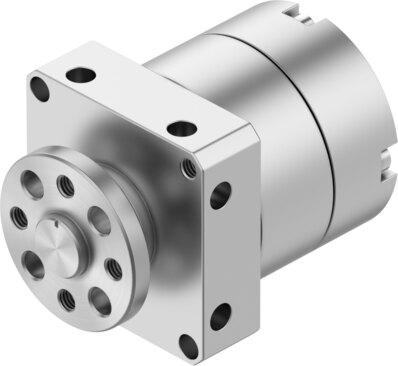

Rotary actuator DSM-T-6-90-P-FW
The Festo 1565425 is a double-acting rotary vane industrial component in size 6 featuring a swivel angle of 0 degrees to 90 degrees with an elastic cushioning ring or pad at both ends and a cushioning angle of 0.5 degrees. It operates with compressed air as per ISO 8573-1:2010 [7:4:4] within an operating pressure range of 0.4 MPa to 0.8 MPa (4 bar to 8 bar), an ambient temperature range of 0 °C to 60 °C, and a maximum swivel frequency of 3 Hz at 6 bar. This unit supports any mounting position, a repetition accuracy of 1 degree, a permissible stop radius of 10 mm, a maximum stop force of 15 N, a maximum axial force of 10 N, and a maximum radial force of 15 N. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1565425
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1565425.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...90 deg
- Permissible stop radius
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.4 MPa...0.8 MPa | 4 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 15 N
- Max. axial force
- 10 N
- Max. radial force
- 15 N
- Theoretical torque at 6 bar
- 0.3 Nm
- Permissible mass moment of inertia
- 0.00065 kgm²
- Product weight
- 65 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1565425. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
