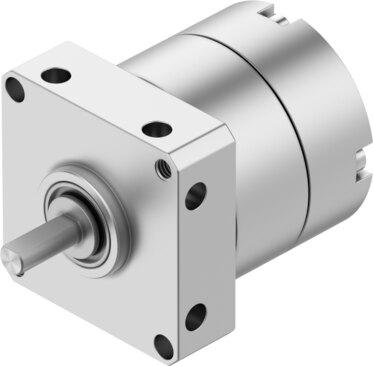

Reference imageConfirm configuration by manufacturer part number.
Festo
1565579
Rotary actuator DSM-T-6-180-P
The Festo 1565579 is a size 6 double-acting rotary vane industrial component featuring a swivel angle of 0 deg to 180 deg and a cushioning angle of 0.5 deg with elastic cushioning rings or pads at both ends. Operating within a pressure range of 0.4 MPa to 0.8 MPa (4 bar to 8 bar), this unit achieves a maximum swivel frequency of 3 Hz at 6 bar and maintains a repetition accuracy of 1 deg while supporting an ambient temperature range of 0 °C to 60 °C in any mounting position. It accepts compressed air as per ISO 8573-1:2010 [7:4:4] with optional oil lubrication, and accommodates a maximum stop force of 15 N, max axial force of 10 N, max radial force of 15 N, and a permissible stop radius of 10 mm. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1565579
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1565579.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 6
- Cushioning angle
- 0.5 deg
- Swivel angle
- 0 deg...180 deg
- Permissible stop radius
- 10 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Rotary vane
- Position sensing
- None
- Operating pressure
- 0.4 MPa...0.8 MPa | 4 bar...8 bar
- Max. swivel frequency at 6 bar
- 3 Hz
- Repetition accuracy
- 1 deg
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- 0 °C...60 °C
- Max. stop force
- 15 N
- Max. axial force
- 10 N
- Max. radial force
- 15 N
- Theoretical torque at 6 bar
- 0.3 Nm
- Permissible mass moment of inertia
- 0.00065 kgm²
- Product weight
- 60 g
- Type of mounting
- With internal thread
- Pneumatic connection
- M3
- Note on materials
- RoHS compliant
- Drive shaft material
- high-alloy stainless steel
- Seals material
- TPE-U(PU)
- Housing material
- Aluminum | Anodized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1565579. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
