Name: Festo 1565761 Electrical interface CPV10-GE-PT-8
Brand: Festo

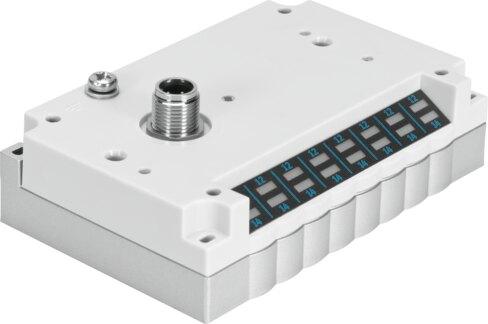

Electrical interface CPV10-GE-PT-8

The Festo part number 1565761 is an industrial component featuring dimensions of 71 mm x 110 mm x 38.25 mm and a capacity for a maximum of 8 valve positions in any mounting position. It operates on a nominal DC voltage of 24 V, supporting an operating voltage range of 18 V to 30 V for electronics and sensors, and 21.6 V to 26.4 V for load voltage with reverse polarity protection. Equipped with I-Port and IO-Link communication protocols, this unit includes load supply undervoltage diagnostics, ATEX and UKEX Zone 2 explosion protection for gas, and a corrosion resistance class of 1. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1565761
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1565761.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Dimensions W x L x H: 71 mm x 110 mm x 38.25 mm
Diagnostics: Load supply undervoltage
Mounting position: Any
Max. no. of valve positions: 8
Reverse polarity protection: For operating voltage
Baud rate: 38.4 kbps, 230.4 kbps
Operating voltage range DC electronics/sensors: 18 V...30 V
DC load voltage operating voltage range: 21.6 V...26.4 V
Intrinsic current consumption at load voltage: 700 mA
Intrinsic current consumption at operating voltage: 35 mA
Nominal operating voltage DC load voltage: 24 V
Nominal voltage DC: 24 V
Nominal operating voltage DC: 24 V
Protocol: I-Port | IO-Link®
ATEX category gas: II 3G
Type of ignition protection for gas: Ex ec IIC Gc X
Explosion protection certication outside the EU: EPL Gc (GB)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX)
KC characters: KC-EMV
Corrosion resistance class (CRC): 1 - Low corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...70 °C
Relative air humidity: 93% | Non-condensating
Degree of protection: IP65
Ambient temperature: -5 °C...50 °C
Product weight: 200 g
IO-Link®, Connection technology: Device 5-pin
IO-Link®, protocol version: Device V 1.0
IO-Link®, communication mode: COM2 (38.4 kBd), COM3 (230.4 kBd)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1565761. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
