Festo
156669

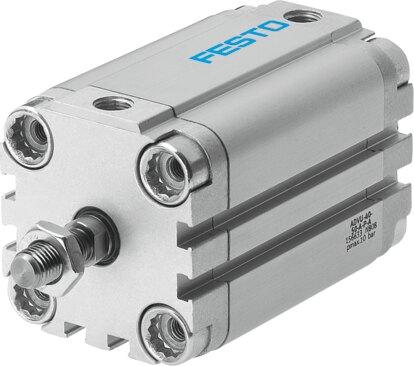

Compact cylinder ADVU-100-50-A-P-A
The Festo 156669 is a double-acting industrial component featuring a 100 mm piston diameter and a 50 mm stroke, operating within a pressure range of 0.06 MPa to 1 MPa (0.6 bar to 10 bar / 8.7 psi to 145 psi). Constructed with an M20x1.5 external piston rod thread at one end, this structural piston and piston rod assembly incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and allows operation with compressed air conforming to ISO 8573-1:2010 [7:4:4]. It delivers a theoretical force of 4712 N advancing and 4418 N retracting at 6 bar, while functioning across an ambient temperature range of -20 °C to 80 °C with a moderate corrosion resistance class (CRC 2) and VDMA24364-B1/B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for an RFQ.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156669
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156669.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 50 mm
- Piston diameter
- 100 mm
- Piston rod thread
- M20x1.5
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.06 MPa...1 MPa | 0.6 bar...10 bar | 8.7 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 1 J
- Theoretical force at 6 bar, retracting
- 4418 N
- Theoretical force at 6 bar, advancing
- 4712 N
- Moving mass at 0 mm stroke
- 614 g
- Additional moving mass per 10 mm stroke
- 38 g
- Basic weight with 0 mm stroke
- 2797 g
- Additional weight per 10 mm stroke
- 177 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/4
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR
