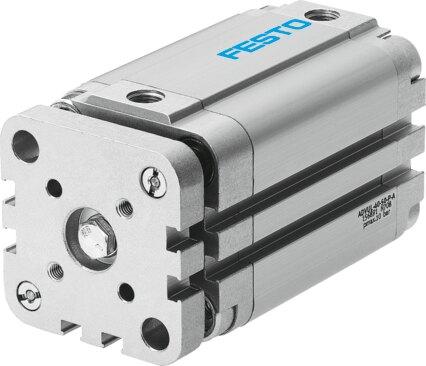

Reference imageConfirm configuration by manufacturer part number.
Festo
156882
Compact cylinder ADVUL-32-60-P-A
The Festo 156882 is a double-acting industrial component featuring a 32 mm piston diameter, a 60 mm stroke, and a piston rod at one end equipped with an anti-torsion guide rod and yoke. Operating within a pressure range of 1 to 10 bar (0.1 MPa to 1 MPa), this unit utilizes compressed air conforming to ISO 8573-1:2010 [7:4:4] and accommodates oil lubrication for ongoing operation across ambient temperatures from -20 °C to 80 °C. It provides elastic cushioning rings at both ends, position sensing via proximity switch, a moderate corrosion resistance class (CRC 2), and generates theoretical forces of 483 N advancing and 415 N retracting at 6 bar. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 156882
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 156882.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 60 mm
- Piston diameter
- 32 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Guide rod with yoke
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Mode of operation
- Double-acting
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 J
- Theoretical force at 6 bar, retracting
- 415 N
- Theoretical force at 6 bar, advancing
- 483 N
- Moving mass at 0 mm stroke
- 111 g
- Additional moving mass per 10 mm stroke
- 17 g
- Basic weight with 0 mm stroke
- 362 g
- Additional weight per 10 mm stroke
- 38 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR | TPE-U(PU)
- Piston rod material
- high-alloy stainless steel
