Festo
157007

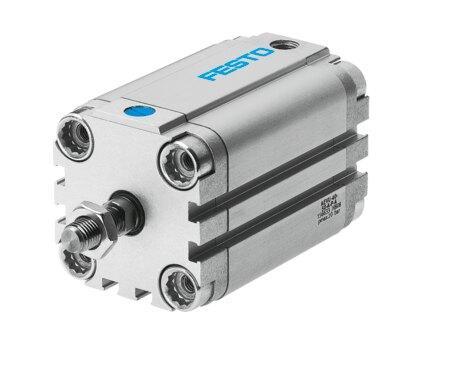

Compact cylinder AEVU-50-15-A-P-A
The Festo 157007 is a single-acting industrial component featuring a 50 mm piston diameter, a 15 mm stroke, and an M12x1.25 piston rod thread with an external thread end. Operating at pressures from 0.08 MPa to 1 MPa (0.8 bar to 10 bar / 11.6 psi to 145 psi), this model delivers a theoretical advancing force of 1121 N at 6 bar using compressed air conforming to ISO 8573-1:2010 [7:4:4]. It incorporates elastic cushioning rings at both ends, position sensing via proximity switch, and offers an ambient temperature range of -20 °C to 80 °C with CRC 2 moderate corrosion stress resistance. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157007
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157007.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M12x1.25
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar | 11.6 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.64 J
- Theoretical force at 6 bar, advancing
- 1121 N
- Moving mass at 0 mm stroke
- 112 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 560 g
- Additional weight per 10 mm stroke
- 72 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR
