Festo
157075

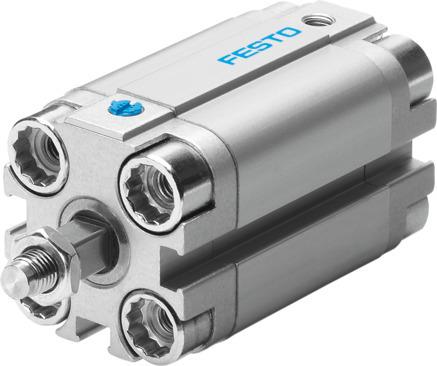

Compact air cylinder AEVULQ-16-15-A-P-A
The Festo 157075 is a single-acting industrial component featuring a 16 mm piston diameter, a 15 mm stroke, and a square piston rod that provides protection against torsion. Designed for compressed air operation within a pressure range of 1.5 bar to 10 bar, this unit delivers a theoretical advancing force of 111 N at 6 bar and incorporates elastic cushioning rings at both ends. Operating within an ambient temperature range of -20 °C to 80 °C, the assembly supports position sensing via proximity sensors and exhibits a moderate corrosion resistance class of CRC 2. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157075
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157075.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 15 mm
- Piston diameter
- 16 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.15 MPa...1 MPa | 1.5 bar...10 bar | 21.75 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.1 J
- Theoretical force at 6 bar, advancing
- 111 N
- Moving mass at 0 mm stroke
- 12 g
- Additional moving mass per 10 mm stroke
- 4 g
- Basic weight with 0 mm stroke
- 89 g
- Additional weight per 10 mm stroke
- 15 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- M5
- Flange screws material
- High-alloy stainless steel
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157075. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
