Festo
157088

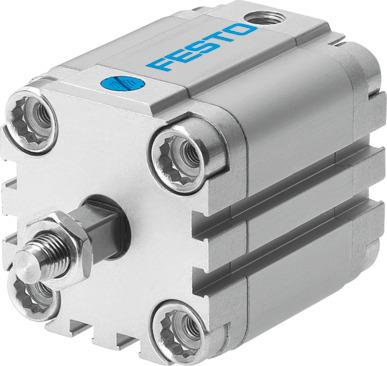

Compact air cylinder AEVULQ-32-5-A-P-A
The Festo 157088 is a single-acting industrial component featuring a 32 mm piston diameter and a 5 mm stroke with a square piston rod for torsion protection and guidance. Operating on compressed air according to ISO 8573-1:2010 [7:4:4] within a 1 bar to 10 bar pressure range, this unit delivers a theoretical advancing force of 450 N at 6 bar and incorporates elastic cushioning rings at both ends. It functions in any mounting position across an ambient temperature range of -20 °C to 80 °C, provides position sensing for proximity sensors, and exhibits a CRC rating of 2 for moderate corrosion stress. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157088
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157088.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 5 mm
- Piston diameter
- 32 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.4 J
- Theoretical force at 6 bar, advancing
- 450 N
- Moving mass at 0 mm stroke
- 49 g
- Additional moving mass per 10 mm stroke
- 9 g
- Basic weight with 0 mm stroke
- 300 g
- Additional weight per 10 mm stroke
- 40 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
