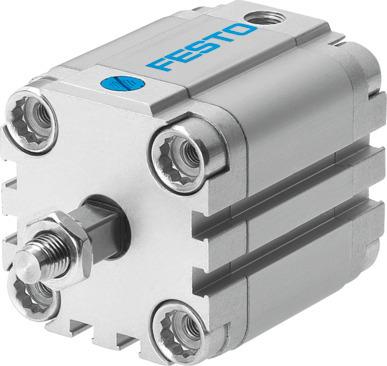

Reference imageConfirm configuration by manufacturer part number.
Festo
157108
Compact air cylinder AEVULQ-80-20-A-P-A
The Festo 157108 is a single-acting industrial component featuring an 80 mm piston diameter, a 20 mm stroke, and a square piston rod that provides protection against torsion. Operating within a pressure range of 1 bar to 10 bar (14.5 psi to 145 psi) on compressed air as per ISO 8573-1:2010 [7:4:4], this piston rod unit delivers a theoretical advancing force of 2902 N at 6 bar. It incorporates elastic cushioning rings at both ends, accommodates position sensing via proximity sensors, and can be mounted in any position. Request a formal quote by submitting the exact part number, required quantity, and application specifications.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157108
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157108.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 20 mm
- Piston diameter
- 80 mm
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Pushing | Single-acting
- Piston rod end
- External thread
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Piston rod at one end
- Protection against torsion/guide
- Square piston rod
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar | 14.5 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.75 J
- Theoretical force at 6 bar, advancing
- 2902 N
- Moving mass at 0 mm stroke
- 307 g
- Additional moving mass per 10 mm stroke
- 25 g
- Basic weight with 0 mm stroke
- 1772 g
- Additional weight per 10 mm stroke
- 168 g
- Type of mounting
- Optionally: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157108. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
