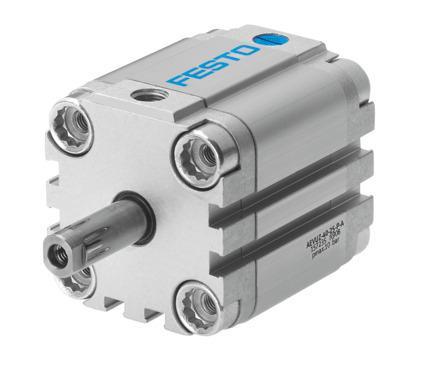

Reference imageConfirm configuration by manufacturer part number.
Festo
157239
Compact cylinder AEVUZ-50-25-P-A
The Festo 157239 is a single-acting industrial component operating in a pulling mode with a 50 mm piston diameter, a 25 mm stroke, and an M8 internal threaded piston rod end. Featuring elastic cushioning rings at both ends, this unit handles an operating pressure range of 0.8 bar to 10 bar (11.6 psi to 145 psi) using compressed air per ISO 8573-1:2010 [7:4:4] with possible oil lubrication. Position sensing is achieved via proximity switch across an ambient temperature range of -20 °C to 80 °C, delivering a theoretical advancing force of 999 N at 6 bar with a moderate corrosion resistance class (CRC 2). Submit the exact part number, quantity, and application requirements to request a formal quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157239
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157239.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 25 mm
- Piston diameter
- 50 mm
- Piston rod thread
- M8
- Cushioning
- Elastic cushioning rings/pads at both ends
- Mounting position
- Any
- Mode of operation
- Single-acting | Pulling
- Piston rod end
- Internal thread
- Structural design
- Piston | Piston rod
- Position sensing
- Via proximity switch
- Variants
- Piston rod at one end
- Operating pressure
- 0.08 MPa...1 MPa | 0.8 bar...10 bar | 11.6 psi...145 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...80 °C
- Impact energy in the end positions
- 0.64 J
- Theoretical force at 6 bar, advancing
- 999 N
- Moving mass at 0 mm stroke
- 112 g
- Additional moving mass per 10 mm stroke
- 16 g
- Basic weight with 0 mm stroke
- 560 g
- Additional weight per 10 mm stroke
- 72 g
- Type of mounting
- Alternatively: | With through-hole | With accessories
- Pneumatic connection
- G1/8
- Flange screws material
- Steel, galvanized
- Cover material
- Wrought aluminum alloy
- Material of dynamic seals
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157239. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
