Festo
157320

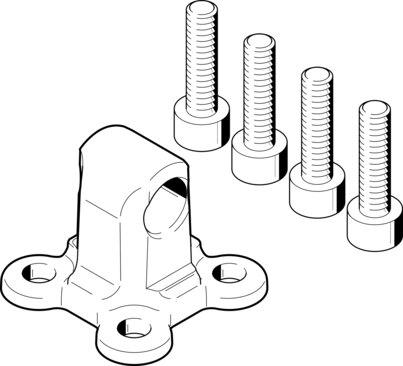

Clevis flange SUA-20
The Festo 157320 industrial component features a size 20 construction with a wrought aluminum alloy mounting material, steel shaft with a protective coating, and polymer bearing. Built for any mounting position, this 41 g unit operates within an ambient temperature range of -40 °C to 90 °C and provides a CRC 2 moderate corrosion stress rating alongside VDMA24364-B1/B2-L LABS conformity and RoHS compliance. Galvanized steel bolts and screws, spring steel sleeves, and spring steel fuses complete the assembly. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157320
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157320.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 20
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 41 g
- Note on materials
- RoHS compliant
- Mounting material
- Wrought aluminum alloy
- Bolt material
- Steel, galvanized
- Sleeve material
- Spring steel
- Material of bearing
- Polymer
- Material of screws
- Galvanized steel
- Fuse material
- Spring steel
- Shaft material
- Steel | With protective coating
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157320. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
