Festo
157323

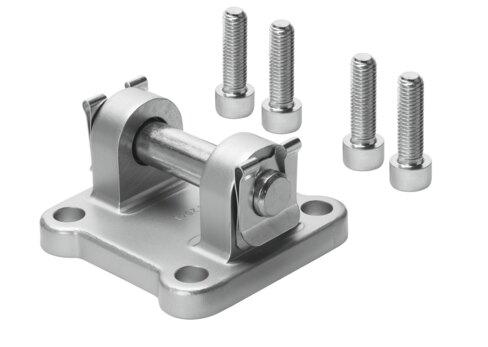

Clevis flange SUA-40
This Festo industrial component, part number 157323, is built with a size 40 format, a wrought aluminum alloy mounting material, and a protective-coated steel shaft with a product weight of 199 g. The assembly features polymer bearings, galvanized steel bolts and screws, spring steel sleeves and fuses, and adheres to RoHS compliance and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -40 °C to 90 °C, supports any mounting position, and provides a CRC 2 moderate corrosion stress rating. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157323
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157323.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 40
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 199 g
- Note on materials
- RoHS compliant
- Mounting material
- Wrought aluminum alloy
- Bolt material
- Steel, galvanized
- Sleeve material
- Spring steel
- Material of bearing
- Polymer
- Material of screws
- Galvanized steel
- Fuse material
- Spring steel
- Shaft material
- Steel | With protective coating
