Festo
157326

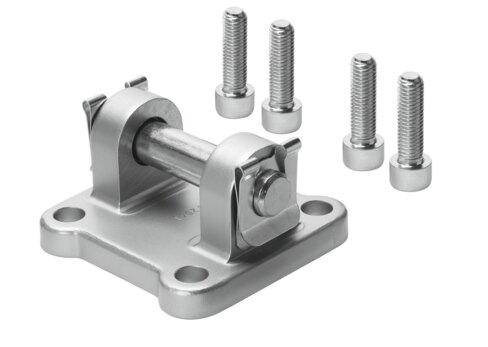

Clevis flange SUA-80
The Festo 157326 industrial component is size 80 and features a wrought aluminum alloy mounting material with galvanized steel bolts, screws, and a protective-coated steel shaft. This 764 g assembly operates within an ambient temperature range of -40 °C to 90 °C and includes polymer bearings, spring steel sleeves and fuses, and an all-position mounting capability. It complies with RoHS material notes, VDMA24364-B1/B2-L LABS conformity, and provides a CRC 2 moderate corrosion stress resistance class. Submit the exact part number, quantity, and application requirements for a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157326
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157326.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Mounting position
- Any
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 764 g
- Note on materials
- RoHS compliant
- Mounting material
- Wrought aluminum alloy
- Bolt material
- Steel, galvanized
- Sleeve material
- Spring steel
- Material of bearing
- Polymer
- Material of screws
- Galvanized steel
- Fuse material
- Spring steel
- Shaft material
- Steel | With protective coating
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157326. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
