Festo
157513

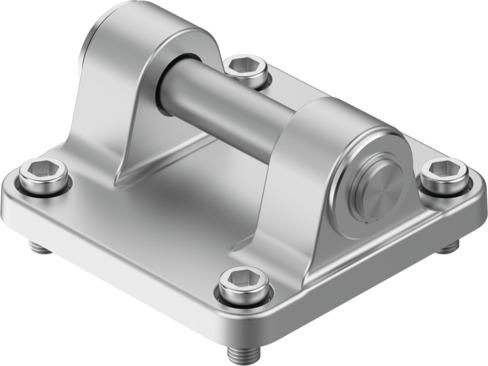

Clevis flange SNGB-320
The Festo 157513 is an industrial component of size 320 based on the ISO 15552 norm, featuring a product weight of 26636 g and a corrosion resistance class of CRC 1 for low corrosion stress. Constructed with spheroidal graphite cast iron mounting material, galvanized steel bolts, screws, discs, and spring steel fuses alongside a polymer bearing, this RoHS compliant unit conforms to VDMA24364-B2-L LABS standards and operates within an ambient temperature range of -40 °C to 90 °C. Request a quote today by submitting the exact part number, quantity, and application requirements.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157513
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157513.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 320
- Based on norm
- ISO 15552 (previously also VDMA 24562, ISO 6431, NF E49 003.1, UNI | 10290)
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -40 °C...90 °C
- Product weight
- 26636 g
- Note on materials
- RoHS compliant
- Mounting material
- Spheroidal graphite cast iron
- Bolt material
- Steel | Galvanized
- Material of bearing
- Polymer
- Disc material
- Steel, galvanized
- Material of screws
- Steel | Galvanized
- Fuse material
- Spring steel, galvanized
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157513. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
