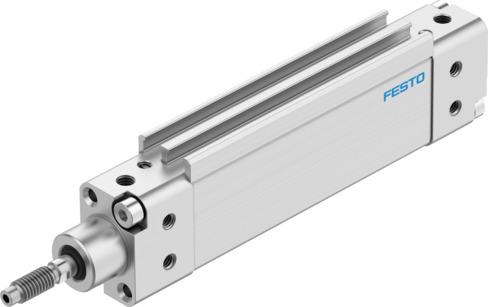

Reference imageConfirm configuration by manufacturer part number.
Festo
157615
Flat cylinder DZH-5/8"- -PPV-A-S6
The Festo 157615 is a double-acting industrial component featuring a 5/8" piston diameter, an adjustable stroke ranging from 0.04 in to 8 in, and an oval piston providing protection against torsion up to a max torque of 0.5 Nm. Operating within a pressure range of 1 bar to 10 bar and ambient temperatures from -20 °C to 120 °C, this unit utilizes compressed air per ISO 8573-1:2010 [7:4:4] and includes adjustable pneumatic cushioning at both ends with a 14 mm cushioning length. Built with heat-resistant seals supporting up to 120°C, position sensing capabilities for proximity sensors, and a moderate corrosion resistance class (CRC 2), it delivers a theoretical force of 104 N retracting and 121 N advancing at 6 bar. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157615
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157615.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...8 in
- Piston diameter
- 5/8"
- Max. angle of rotation of the piston rod +/-
- 3.1 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Cushioning length
- 14 mm
- Max. torque for protection against rotation
- 0.5 Nm
- Theoretical force at 6 bar, retracting
- 104 N
- Theoretical force at 6 bar, advancing
- 121 N
- Additional moving mass per 10 mm stroke
- 23 g
- Additional weight per 10 mm stroke
- 11 g
- Basic weight with 0 mm stroke
- 140 g
- Type of mounting
- Optionally: | With internal thread | With accessories
- Pneumatic connection
- 10-32 UNF-2B
- Note on materials
- RoHS-compliant
- Cover material
- Aluminum
- Seals material
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 157615. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
