Festo
157616

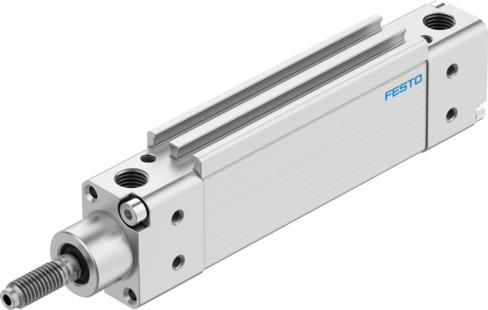

Flat cylinder DZH-3/4"- -PPV-A-S6
The Festo 157616 is a double-acting industrial component featuring a 3/4-inch piston diameter, an adjustable stroke ranging from 0.04 in to 13 in, and an oval piston providing torsion protection with a maximum rotation angle of plus or minus 2.6 degrees. Engineered with adjustable pneumatic cushioning at both ends, a 17 mm cushioning length, and heat-resistant seals supporting ambient temperatures up to 120 °C, this unit operates on compressed air within a pressure range of 1 bar to 10 bar. It delivers a theoretical force of 188 N advancing and 158 N retracting at 6 bar, while maintaining a CRC rating of 2 for moderate corrosion stress and supporting position sensing via proximity sensors in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 157616
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 157616.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Stroke
- 0.04 in...13 in
- Piston diameter
- 3/4"
- Max. angle of rotation of the piston rod +/-
- 2.6 deg
- Cushioning
- Pneumatic cushioning, adjustable at both ends
- Mounting position
- Any
- Mode of operation
- Double-acting
- Structural design
- Piston | Piston rod
- Position sensing
- For proximity sensor
- Variants
- Heat-resistant seals max. 120°C
- Protection against torsion/guide
- Oval piston
- Operating pressure
- 0.1 MPa...1 MPa | 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Ambient temperature
- -20 °C...120 °C
- Cushioning length
- 17 mm
- Max. torque for protection against rotation
- 0.6 Nm
- Theoretical force at 6 bar, retracting
- 158 N
- Theoretical force at 6 bar, advancing
- 188 N
- Additional moving mass per 10 mm stroke
- 177 g
- Additional weight per 10 mm stroke
- 15 g
- Basic weight with 0 mm stroke
- 230 g
- Type of mounting
- Optionally: | With internal thread | With accessories
- Pneumatic connection
- 1/8 NPT
- Note on materials
- RoHS-compliant
- Cover material
- Aluminum
- Seals material
- TPE-U(PU)
