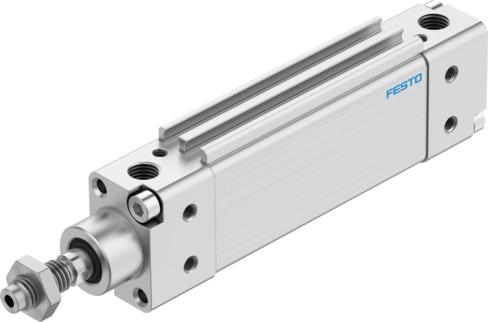

Name: Festo 157617 Flat cylinder DZH-1"- -PPV-A-S6
Brand: Festo

Flat cylinder DZH-1"- -PPV-A-S6

The Festo 157617 is a double-acting industrial component featuring a 1-inch piston diameter, an adjustable stroke ranging from 0.04 inches to 20 inches, and heat-resistant seals rated for a maximum temperature of 120°C. Operating within a pressure range of 1 bar to 10 bar utilizing compressed air per ISO 8573-1:2010 [7:4:4], this piston and piston rod design incorporates adjustable pneumatic cushioning at both ends and an oval piston providing an anti-torsion guide with a maximum rotation angle of plus or minus 2.4 degrees. It achieves a theoretical force of 295 N advancing and 247 N retracting at 6 bar, while maintaining a moderate corrosion stress rating of CRC 2 and an ambient operating temperature span of -20°C to 120°C. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 157617
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 157617.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Stroke: 0.04 in...20 in
Piston diameter: 1"
Max. angle of rotation of the piston rod +/-: 2.4 deg
Cushioning: Pneumatic cushioning, adjustable at both ends
Mounting position: Any
Mode of operation: Double-acting
Structural design: Piston | Piston rod
Position sensing: For proximity sensor
Variants: Heat-resistant seals max. 120°C
Protection against torsion/guide: Oval piston
Operating pressure: 0.1 MPa...1 MPa | 1 bar...10 bar
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B2-L
Ambient temperature: -20 °C...120 °C
Cushioning length: 17 mm
Max. torque for protection against rotation: 0.8 Nm
Theoretical force at 6 bar, retracting: 247 N
Theoretical force at 6 bar, advancing: 295 N
Additional moving mass per 10 mm stroke: 23 g
Additional weight per 10 mm stroke: 21 g
Basic weight with 0 mm stroke: 330 g
Type of mounting: Optionally: | With internal thread | With accessories
Pneumatic connection: 1/8 NPT
Note on materials: RoHS-compliant
Cover material: Aluminum
Seals material: TPE-U(PU)

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 157617. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
