1577012

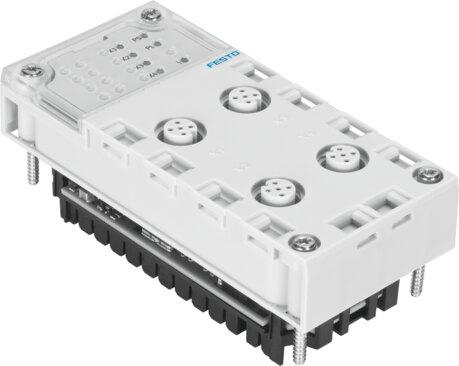

Name: Festo 1577012 Electrical interface CPX-CTEL-4-M12-5POL
Brand: Festo

Electrical interface CPX-CTEL-4-M12-5POL

The Festo 1577012 is an industrial component utilizing the I-Port protocol with a product weight of 110 g and dimensions of 50 mm x 55 mm x 107 mm including the interlinking block. Featuring IP65 and IP67 degrees of protection alongside a CRC 1 corrosion resistance class when installed, this device incorporates reinforced PA and PC housing materials operating within an ambient temperature range of -5 °C to 50 °C. It provides a max cable length of 20 m, 32-byte address capacities for both inputs and outputs, and comprehensive LED indicators for system supply, load supply, module state, and I-Port status. Please submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1577012
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1577012.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protocol: I-Port
Dimensions W x L x H: (incl. interlinking block) | 50 mm x 107 mm x 55 mm
Product weight: 110 g
Ambient temperature: -5 °C...50 °C
Storage temperature: -20 °C...70 °C
Degree of protection: IP65 | IP67
Corrosion resistance class (CRC): 1 - Low corrosion stress | (installed)
Max. cable length: 20 m
LABS (PWIS) conformity: VDMA24364-B2-L
Note on materials: RoHS compliant
Housing material: PA-reinforced | PC
LED indicators: I-Port status / diagnostics | Module state | Load supply status | System supply status
Diagnostics: Communication error | Module short circuit | Module-orientated diagnostics | Undervoltage
Control elements: DIL switch
Max. address capacity inputs: 32 byte
Max. address capacity outputs: 32 byte
Parameterization: Diagnostic behavior | Failsafe per channel | Forcing per channel | Idle mode per channel | Module parameters | Tool change mode
Internal cycle time: 1 ms per 1 byte of user data
Additional functions: Tool change mode
Electrical connection: 4x port | 5-pin

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1577012. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
