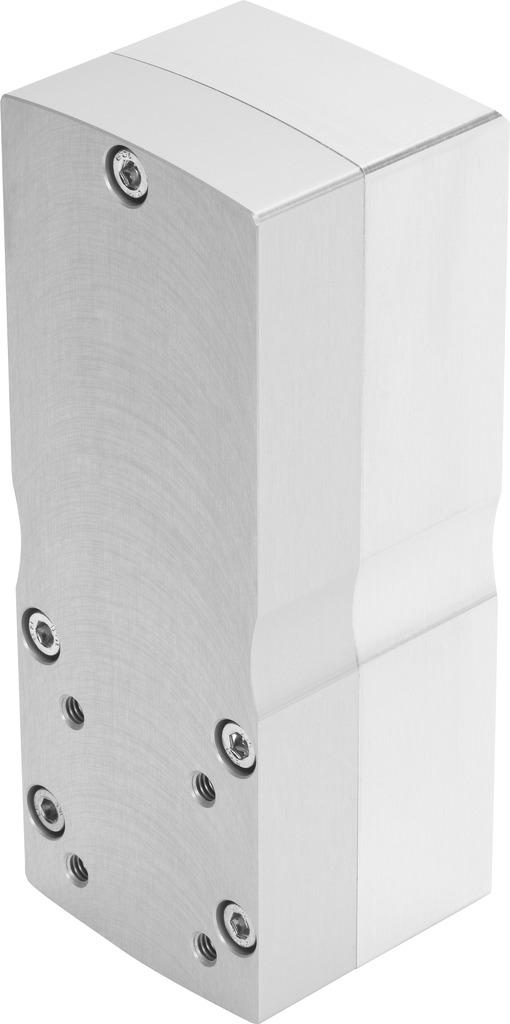

Reference imageConfirm configuration by manufacturer part number.
Festo
1577063
Parallel kit EAMM-U-60-D32-67A-91
This Festo industrial component, part number 1577063, features a size 60 frame with a 1:1 gear ratio and a transferable torque of 3 Nm. Operating at a maximum rotational speed of 6000 1/min, the unit has a mass moment of inertia of 26.7 kgmm² and a no-load driving torque of 0.07 Nm. It includes an actuator interface code of D32B, a motor input interface code of 67A, and a product weight of 1170 g with IP40 degree of protection. Please submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1577063
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1577063.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1170 g
- Interface code, actuator
- D32B
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1577063. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
