Festo
1577083

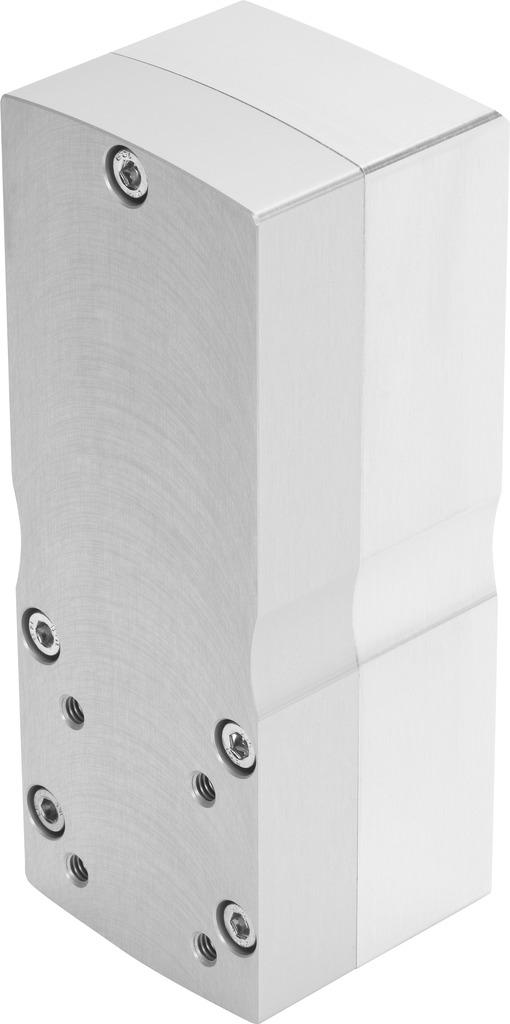

Parallel kit EAMM-U-60-D40-67A-91
The Festo part number 1577083 is an industrial component featuring size 60 dimensions, a 1:1 gear ratio, and any mounting position capability with a product weight of 1150 g. This RoHS-compliant unit delivers a transferable torque of 3 Nm, a no-load driving torque of 0.07 Nm, a mass moment of inertia of 26.7 kgmm², and a maximum rotational speed of 6000 1/min while operating within an ambient temperature range of -10 °C to 60 °C under an IP40 degree of protection. Additional technical specifications include VDMA24364 zone III LABS conformity, a storage temperature range of -25 °C to 60 °C, 0 to 95 % relative air humidity tolerance, an actuator interface code of D40B, and a motor-in interface code of 67A. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1577083
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1577083.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1150 g
- Interface code, actuator
- D40B
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1577083. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
