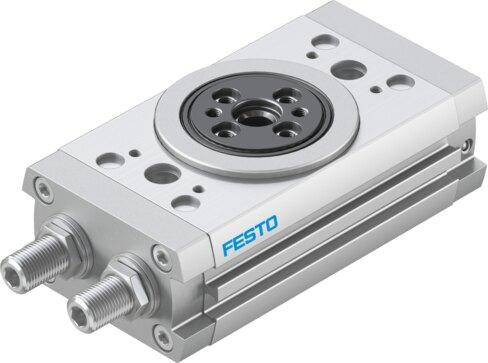

Name: Festo 1577238 Rotary actuator DRRD-16-180-FH-PA
Brand: Festo

Rotary actuator DRRD-16-180-FH-PA

The Festo 1577238 is a double-acting industrial component featuring a gear rack and pinion structural design with a size 16 and a 180-degree swivel angle. Operating within a pressure range of 0.3 MPa to 0.8 MPa and utilizing compressed air per ISO 8573-1:2010 [7:4:4], this unit delivers a theoretical torque of 1.59 Nm at 6 bar while employing elastic cushioning rings at both ends. It incorporates position sensing via proximity switch, features M5 pneumatic connections, and accommodates any mounting position with alternative through-hole or internal thread options. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1577238
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1577238.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 16
Cushioning angle: 36 deg
Setting range of swivel angle for each end position: +10 /-100 deg
Swivel angle: 180 deg
Cushioning: Elastic cushioning rings/pads at both ends
Mounting position: Any
Structural design: Gear rack/pinion
Position sensing: Via proximity switch
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Mode of operation: Double-acting
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
LABS (PWIS) conformity: VDMA24364 Zone III
Cleanroom suitability, measured according to ISO 14644-14: Class 5 according to ISO 14644-1
Ambient temperature: -10 °C...60 °C
Theoretical torque at 6 bar: 1.59 Nm
Permissible mass moment of inertia: 0.0175 kgm²
Product weight: 640 g
Type of mounting: Alternatively: | With through-hole | With internal thread
Pneumatic connection: M5
Note on materials: RoHS compliant
Drive shaft material: Quenched and tempered steel
Cover material: Wrought aluminum alloy | Anodized
Seals material: NBR | TPE-U(PU)
Housing material: Wrought aluminum alloy | Smooth-anodized
