Festo
1577408

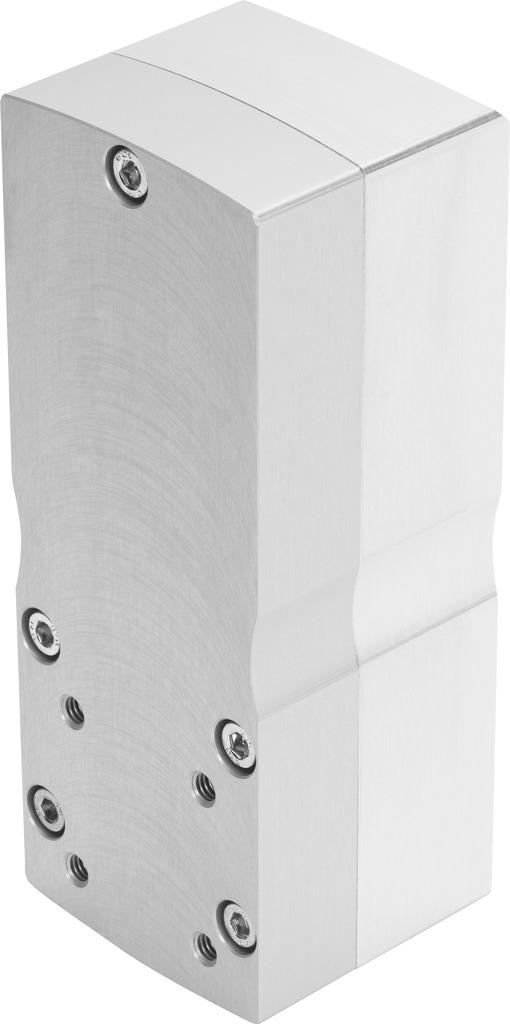

Parallel kit EAMM-U-60-S38-67A-91
The Festo 1577408 is an industrial component featuring a size 60 frame, a 1:1 gear ratio, an S38 actuator interface code, and a 67A motor input interface code, with a product weight of 1110 g and RoHS-compliant materials. It delivers a transferable torque of 3 Nm, a no-load driving torque of 0.07 Nm, a mass moment of inertia of 26.7 kgmm², and a maximum rotational speed of 6000 1/min while operating in ambient temperatures from -10 °C to 60 °C with IP40 protection and VDMA24364 zone III LABS conformity. This unit operates in any mounting position within a 0 to 95% relative air humidity range and withstands storage temperatures between -25 °C and 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1577408
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1577408.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 60
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 6000 1/min
- LABS (PWIS) conformity
- VDMA24364 zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95 %
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 26.7 kgmm²
- No-load driving torque
- 0.07 Nm
- Transferable torque
- 3 Nm
- Product weight
- 1110 g
- Interface code, actuator
- S38
- Interface code, motor in
- 67A
- Note on materials
- RoHS-compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1577408. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
