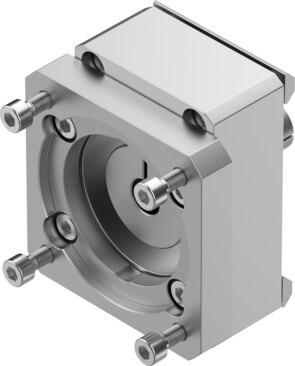

Reference imageConfirm configuration by manufacturer part number.
Festo
1578139
Axial kit EAMM-A-R48-70A
The Festo 1578139 industrial component features a nominal length of 40.2 mm, a mass moment of inertia of 14.5 kgmm2, and a product weight of 450 g with RoHS-compliant materials. It supports any mounting position, a maximum rotational speed of 8000 rpm, and a transferable torque of 4.4 Nm, incorporating actuator interface code R48 and motor input interface code 70A. Operating within an ambient temperature range of -10 °C to 60 °C and storage temperatures from -25 °C to 60 °C, the unit withstands 0 to 95% relative air humidity while meeting IP40 protection and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1578139
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1578139.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Nominal length
- 40.2 mm
- Mounting position
- Any
- Max. rotational speed
- 8000 rpm
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 14.5 kgmm²
- Transferable torque
- 4.4 Nm
- Product weight
- 450 g
- Interface code, actuator
- R48
- Interface code, motor in
- 70A
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1578139. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
