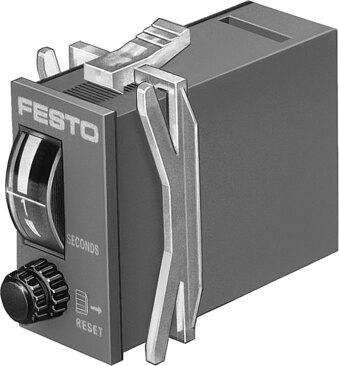

Reference imageConfirm configuration by manufacturer part number.
Festo
158495
Timer PZVT-3-SEC
The Festo 158495 is a mechanical sequence counter featuring a pneumatic actuator and an ABS housing designed for front panel mounting with M5 internal thread pneumatic connections. It operates within a pressure range of 2 bar to 6 bar, utilizing compressed air as per ISO 8573-1:2010 [7:4:4] without oil lubrication, and provides an adjustable delay time of 0.2 s to 3 s with a setting accuracy of ± 0.3 s. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 explosion prevention, this 45 g component achieves an IP54 degree of protection when installed with a protective cap and panel frame. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 158495
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 158495.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Mechanical sequence counter with pneumatic actuator
- Switch-off pressure
- 0.1 bar
- Operating pressure
- 2 bar...6 bar
- Switch-on pressure
- 1.6 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Adjustable delay time
- 0.2 s...3 s
- Setting accuracy
- ± 0.3 s
- Pause period for reset
- 200 ms
- Repetition accuracy of time setting
- ± 0.1 s
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54 | With protective cap and panel frame | As per IEC 60529
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 45 g
- Type of mounting
- Front panel mounting
- Pneumatic connection
- Internal thread M5
- Note on materials
- RoHS compliant
- Housing material
- ABS
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 158495. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
