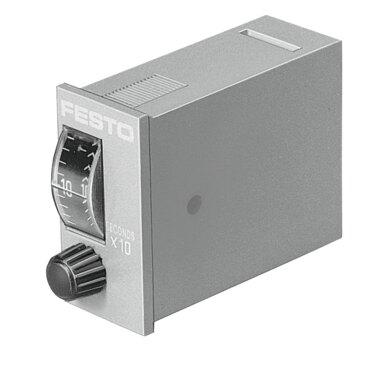

Reference imageConfirm configuration by manufacturer part number.
Festo
158496
Reset module PZVT-AUT
The Festo 158496 is a mechanical sequence counter featuring a pneumatic actuator housed in ABS with M5 internal pneumatic connections for front panel mounting. Operating within a 2 bar to 6 bar pressure range utilizing ISO 8573-1:2010 [7:4:4] compressed air without oil lubrication, this component delivers a 50 l/min nominal flow rate with switch-on and switch-off pressures of 1.6 bar and 0.1 bar respectively. It provides an adjustable delay time from 0.2 s to 2 s with a repetition accuracy of ± 0.3 s, a 200 ms reset pause period, and IP54 protection when utilizing a protective cap and panel frame across an ambient temperature range of -15 °C to 60 °C. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 environments, this RoHS compliant and VDMA24364-B1/B2-L conformant unit weighs 50 g. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 158496
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 158496.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Structural design
- Mechanical sequence counter with pneumatic actuator
- Switch-off pressure
- 0.1 bar
- Operating pressure
- 2 bar...6 bar
- Switch-on pressure
- 1.6 bar
- Normal nominal ow rate (normalized to DIN 1343)
- 50 l/min
- Adjustable delay time
- 0.2 s...2 s
- Pause period for reset
- 200 ms
- Repetition accuracy of time setting
- ± 0.3 s
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Operation with oil lubrication not possible
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Degree of protection
- IP54 | With protective cap and panel frame | As per IEC 60529
- Ambient temperature
- -15 °C...60 °C
- Product weight
- 50 g
- Type of mounting
- Front panel mounting
- Pneumatic connection
- Internal thread M5
- Note on materials
- RoHS compliant
- Housing material
- ABS
