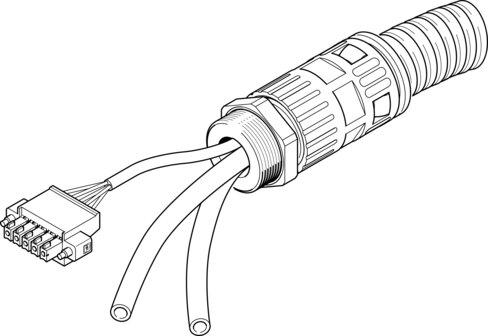

Name: Festo 1585793 Connecting cable NHSB-A1-5-BLG5-LE5-PU8-2XBB
Brand: Festo

Connecting cable NHSB-A1-5-BLG5-LE5-PU8-2XBB

The Festo industrial component, part number 1585793, features a 5 m protective tube length made of PA with matching PA fittings, accommodating an ambient temperature range of -20 °C to 60 °C and flexible cable installation from -5 °C to 60 °C. This 1250 g unit provides IP65, IP67, IP69K, and NEMA 4 degrees of protection, a DC operating voltage range of 0 V to 30 V, and supports compressed air operating medium per ISO 8573-1:2010 [7:4:4] with lubricated operation capability. Featuring a straight 5-pin plug to a 5-wire open end with a 5 x 0.75 mm² cable design and a minimum bending radius of 100 mm, it operates in 5 to 100% condensating relative air humidity and weather-protected exterior locations class C1 based on IEC 60654-1. Submit the exact part number, quantity, and application requirements to request a quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 1585793
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 1585793.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Protective tube length: 5 m
Mounting position: Any
Use in exterior area: Weather-protected locations class C1 based on IEC 60654-1
DC operating voltage range: 0 V...30 V
LABS (PWIS) conformity: VDMA24364 Zone III
Relative air humidity: 5 - 100% | Condensating
Degree of protection: IP65 | IP67 | IP69K | NEMA 4
Ambient temperature: -20 °C...60 °C
Ambient temperature with exible cable installation: -5 °C...60 °C
Electrical connection 1: Straight plug, 5-pin
Electrical connection 2: Open end, 5-wire
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Lubricated operation possible
Pneumatic connection: For pneumatic tubing outside diameter 8 mm | For pneumatic tubing outside diameter 10 mm
Min. cable bending radius: 100 mm
Cable design: 5 x 0.75 mm²
Product weight: 1250 g
Note on materials: RoHS compliant
Protective conduit material: PA
Protective conduit tting material: PA
Material of cable sheath: PVC
Seals material: TPE

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 1585793. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
