Festo
1585794

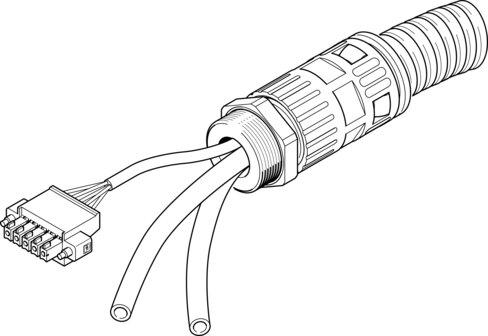

Connecting cable NHSB-A1-10-BLG5-LE5-PU8-2XBB
Manufactured by Festo as part number 1585794, this industrial component features a 10 m protective tube length, a 5-pin straight plug, and a 5-wire open end with a cable design of 5 x 0.75 mm². The assembly operates within a 0 V to 30 V DC voltage range and accommodates compressed air operating media according to ISO 8573-1:2010 [7:4:4] for pneumatic tubing with an outside diameter of 8 mm or 10 mm. Constructed with PA protective conduit and fitting materials, the unit provides IP65, IP67, IP69K, and NEMA 4 degrees of protection for ambient temperatures ranging from -20 °C to 60 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1585794
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1585794.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Protective tube length
- 10 m
- Mounting position
- Any
- Use in exterior area
- Weather-protected locations class C1 based on IEC 60654-1
- DC operating voltage range
- 0 V...30 V
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Relative air humidity
- 5 - 100% | Condensating
- Degree of protection
- IP65 | IP67 | IP69K | NEMA 4
- Ambient temperature
- -20 °C...60 °C
- Ambient temperature with exible cable installation
- -5 °C...60 °C
- Electrical connection 1
- Straight plug, 5-pin
- Electrical connection 2
- Open end, 5-wire
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4]
- Information on operating and pilot media
- Lubricated operation possible
- Pneumatic connection
- For pneumatic tubing outside diameter 8 mm | For pneumatic tubing outside diameter 10 mm
- Min. cable bending radius
- 100 mm
- Cable design
- 5 x 0.75 mm²
- Product weight
- 2500 g
- Note on materials
- RoHS compliant
- Protective conduit material
- PA
- Protective conduit tting material
- PA
- Material of cable sheath
- PVC
- Seals material
- TPE
