Festo
1586276

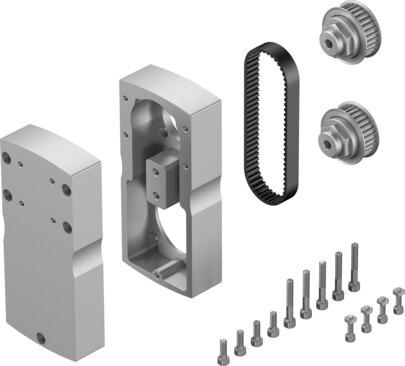

Parallel kit EAMM-U-86-D60-60H-102
Engineered by Festo, this industrial component features a size 86 frame with a 1:1 gear ratio, a transferable torque of 9.5 Nm, and a maximum rotational speed of 5000 rpm. The unit weighs 2470 g, incorporates a mass moment of inertia of 175 kgmm², and operates with a no-load driving torque of 0.25 Nm under an ambient temperature range of -10 °C to 60 °C. Featuring IP40 protection, VDMA24364 Zone III LABS conformity, and RoHS-compliant materials, it includes a D60B actuator interface code and a 60H motor input interface code for installation in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this Festo component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1586276
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1586276.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 86
- Mounting position
- Any
- Gear ratio
- 1:1
- Max. rotational speed
- 5000 rpm
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -25 °C...60 °C
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- -10 °C...60 °C
- Mass moment of inertia
- 175 kgmm²
- No-load driving torque
- 0.25 Nm
- Transferable torque
- 9.5 Nm
- Product weight
- 2470 g
- Interface code, actuator
- D60B
- Interface code, motor in
- 60H
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1586276. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
