Festo
15868

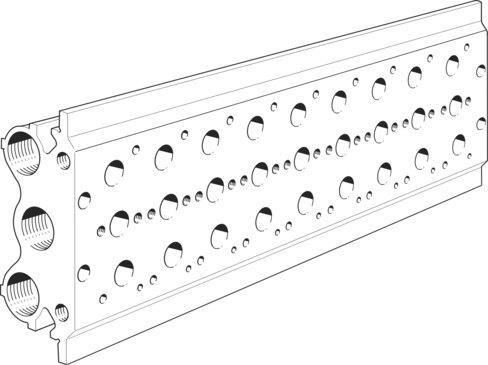

Manifold block PRS-1/4-9-B
This Festo industrial component, part number 15868, is an aluminum sub-base featuring a maximum of 9 valve positions and a product weight of 3100 g. It includes pneumatic connections 1, 3, and 5 sized at G1/2, pilot exhaust air ports 82 and 84 sized at G1/8, and utilizes through-hole mounting. The materials are RoHS compliant and conform to VDMA24364-B1/B2-L LABS (PWIS) standards. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 15868
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 15868.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Max. no. of valve positions
- 9
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Product weight
- 3100 g
- Type of mounting
- With through-hole
- Pilot exhaust air port 82
- G1/8
- Pilot exhaust air port 84
- G1/8
- Pneumatic connection 1
- G1/2
- Pneumatic connection 3
- G1/2
- Pneumatic connection 5
- G1/2
- Note on materials
- RoHS compliant
- Material of sub-base
- Aluminum
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 15868. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
