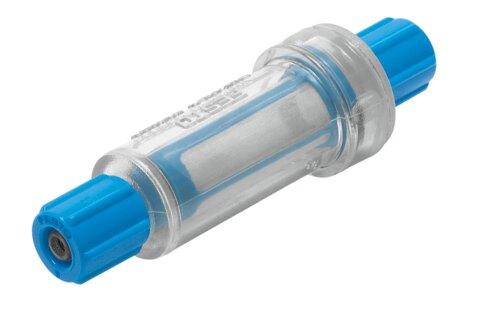

Name: Festo 15889 Vacuum filter VAF-PK-4
Brand: Festo

Vacuum filter VAF-PK-4

The Festo part number 15889 is a 6 g industrial component featuring a 3 mm nominal width, a 50 µm filtration grade, and an operating pressure range of -0.95 bar to 0 bar exclusively for open vacuum systems. It achieves a 70 l/min flow rate at -0.75 bar negative pressure, accommodates an 8 bar ejector pulse, and utilizes PK-4 pneumatic connections with a POM union nut, a fabric and PA compressed air filter, and a PA housing supporting in-line installation in any mounting position. This RoHS-compliant unit operates between 0 ¼irc}C and 40 ¼irc}C using compressed air per ISO 8573-1:2010 [7:-:-], meets VDMA24364-B1/B2-L LABS conformity, and is suitable for Li-ion battery production with reduced Cu/Zn/Ni values (F1a). Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 15889
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 15889.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Nominal width: 3 mm
Mounting position: Any
Grade of ltration: 50 µm
Operating pressure: -0.95 bar...0 bar
Information on operating pressure: Only for use in open vacuum systems
Flow rate at negative pressure = -0.75 bar: 70 l/min
Operating medium: Compressed air as per ISO 8573-1:2010 [7:-:-]
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Ambient temperature: 0 °C...40 °C
Product weight: 6 g
Type of mounting: In-line installation
Pneumatic connection: PK-4 with union nut
Material of union nut: POM
Note on materials: RoHS compliant
Compressed air lter material: Fabric | PA
Housing material: PA
Ejector pulse suitability: 8 bar

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 15889. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
