Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

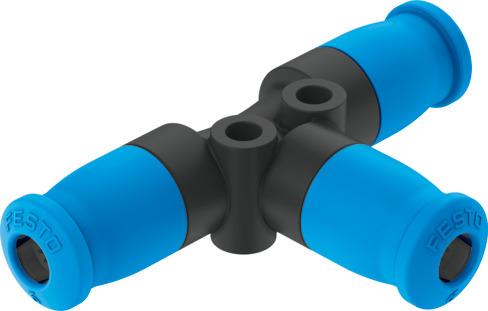

Reference imageConfirm configuration by manufacturer part number.
Festo
1590710
Click T-connector NPKA-T-Q6-E-P10
The Festo part number 1590710 is a standard industrial component featuring a structural design based on the push-pull principle with a nominal width of 4 mm and a tubing insertion depth of 25.8 mm. Constructed with a PA66-GF30 housing, a POM sleeve, and an NBR threaded seal, this RoHS-compliant part accommodates compressed air or liquid water within an operating pressure range of -0.095 MPa to 1 MPa and ambient temperatures from -10 °C to 60 °C. It includes pneumatic connections for 6 mm outside diameter tubing at both connection points and is supplied in a pack size of 10 weighing 12.5 g each with any mounting position permitted. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 1590710
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 1590710.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Standard
- Nominal width
- 4 mm
- Tubing insertion depth
- 25.8 mm
- Mounting position
- Any
- Pack size
- 10
- Structural design
- Push-pull principle
- Operating pressure
- -0.095 MPa...1 MPa | -0.95 bar...10 bar | -13.775 psi...145 psi
- Information on operating pressure
- Water: max. 0.6 MPa at 0 - 50 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Information on operating and pilot media
- Lubricated operation possible
- LABS (PWIS) conformity
- VDMA24364-B2-L
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 12.5 g
- Pneumatic connection 1
- For pneumatic tubing outside diameter 6 mm
- Pneumatic connection 2
- for pneumatic tubing outside diameter 6 mm
- Note on materials
- RoHS compliant
- Housing material
- PA66-GF30
- Material of threaded seal
- NBR
- Sleeve material
- POM
- Material of tubing seal
- NBR
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 1590710. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
