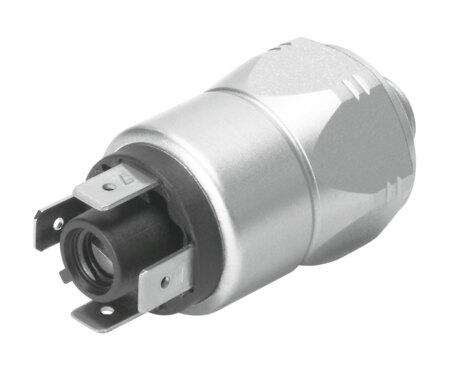

Reference imageConfirm configuration by manufacturer part number.
Festo
159259
Pressure switch PEV-1/4-A-SW27
The Festo 159259 is a pneumatic and electric pressure transducer engineered to measure relative pressure across a range of 1 bar to 10 bar using compressed air as per ISO 8573-1:2010 [7:-:-]. This industrial component features a G1/4 pneumatic connection, a 4-pin plug electrical connection, a screw-in mounting design, and a changeover switch accommodating a maximum switching frequency of 3 Hz with operating voltages up to 250 V AC and DC. It complies with CE marking as per the EU low voltage directive and UKCA marking to UK instructions for electrical equipment, operating within a medium temperature range of -20 °C to 80 °C and an ambient temperature range of -20 °C to 100 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 159259
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 159259.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- CE marking (see declaration of conformity)
- As per EU low voltage directive
- UKCA marking (see declaration of conformity)
- To UK instructions for electrical equipment
- Measured variable
- Relative pressure
- Method of measurement
- Pneumatic/electric pressure transducer
- Pressure measuring range
- 1 bar...10 bar
- Operating pressure
- 1 bar...10 bar
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-]
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Temperature of medium
- -20 °C...80 °C
- Ambient temperature
- -20 °C...100 °C
- Switching element function
- Changeover switch
- Max. switching frequency
- 3 Hz
- Max. switching output voltage AC
- 250 V
- Max. switching output voltage DC
- 250 V
- Max. output current
- 4000 mA
- DC operating voltage range
- 12 V...250 V
- Electrical connection
- 4-pin | Plug
- Type of mounting
- Screw-in
- Mounting position
- Any
- Pneumatic connection
- G1/4
- Product weight
- 138 g
- Housing material
- Steel, galvanized
- Diaphragm material
- NBR
- Setting range threshold value
- 1 bar...10 bar
- Degree of protection
- IP65
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 159259. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
